三维编织预造件

利用优势：

Application Advantage：

保温隔热机能优异；三维微孔结构、孔隙率高，气体过滤阻力幼。

good heat insulation, three-dimensional microporous structure, high porosity, low gas filtration resistance.

超凡国际官网-钻营健全,你我一路成长

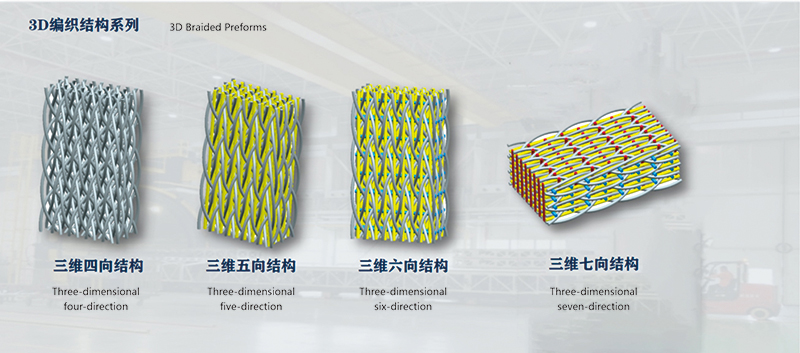

三维整体编织技术在工艺上凸起的特点是拥有编织变截面或异形截面织物的能力，使用编织工艺和设备上的技术特点，通过扭转编织底盘中携纱器的阵列状态和每个携纱器所载纱线的细度及其活动大局，可能按零件的状态和尺寸大幼直接编织出三维预造件，进而保障零件整体结构机能。

The outstanding feature of 3D braided technology is the ability to weave preforms with variable or irregular crosssection. By using the technical characteristics of weaving technology and equipment,3D prefabricated parts can be directly woven according to the shape and size of the parts by changing the array shape of the yarn carrier in the weaving chassis and fineness of the yarn carried by each yarn carrier and its movement form, and ensure the overall structural performance of the parts. 3D braided products are formed as a whole of at one time, which has the characteristics of non-layered structure, higher interlayer strength and better comprehensive mechanical properties.

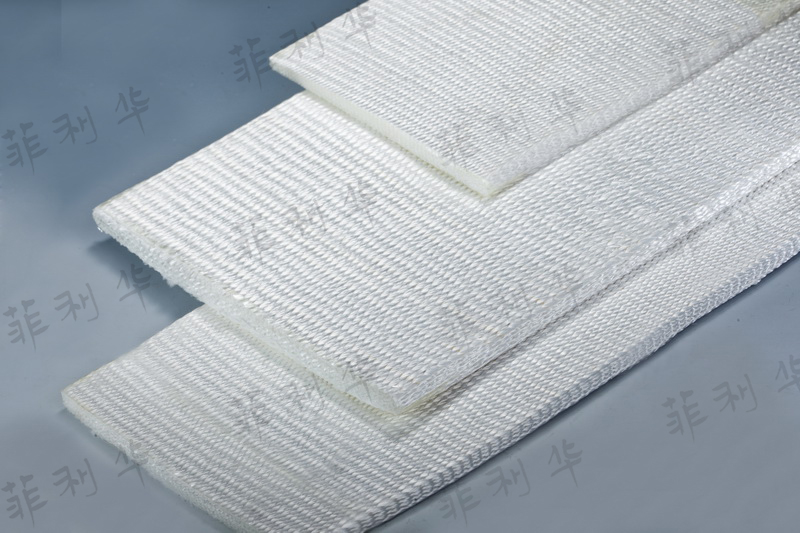

三维编织平板系列

3D Braided Plate Series

厚度（mm）

幅宽（mm）

长度（m）

1-40

10-200

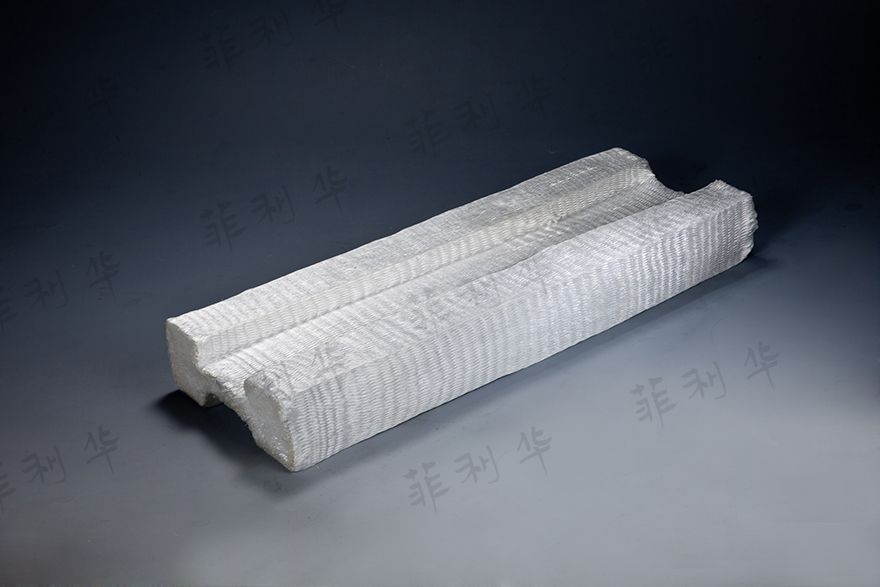

三维编织梁系列

3D Braided Beam Series

可实现 — L型、T型和H型结构分歧结构组合表形

Achievable L、T and H braided structures Different structure combination shape

厚度（mm）

幅宽（mm）

1-40

10-200

三维编织异形系列

3D Near-net Shape Series

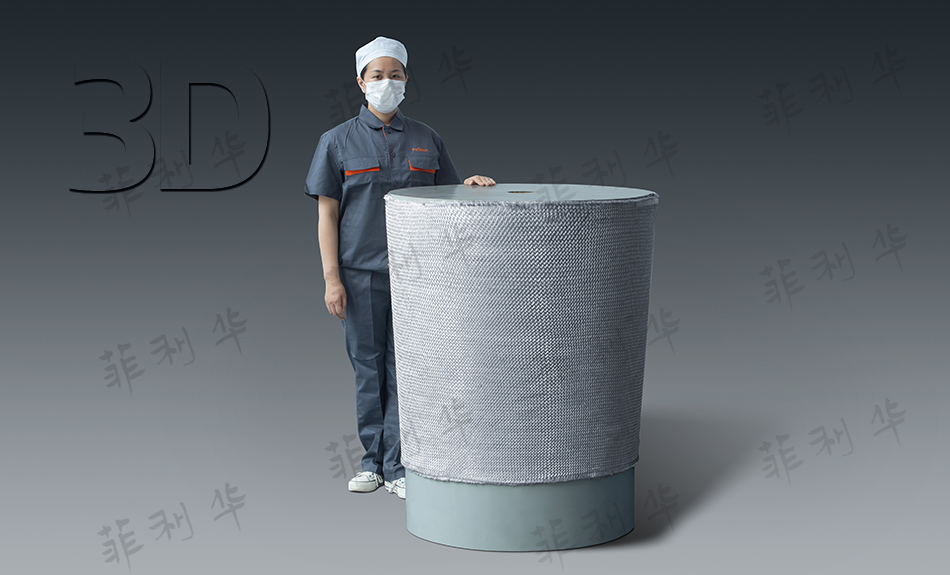

可实现 — 大尺寸异型结构

Achievable—Large size and heterogeneous structure

可实现 — 变截面异型结构

Achievable—Variable section andshaped structure

可实现 — 封顶技术

Achievable—The technique of capping

三维纺织预造件系列重要用处：Main Application:

· 热防护系统：发起机喷管，飞行器头锥、翼前缘及发起机热端部位。
· 透波系统：天线窗等。

Wave-transparent System: Antenna Window, etc. Thermal Protection System: Engine nozzles, Nose Cone and Wing of Vehicle, Aeroengine Hot Components.
