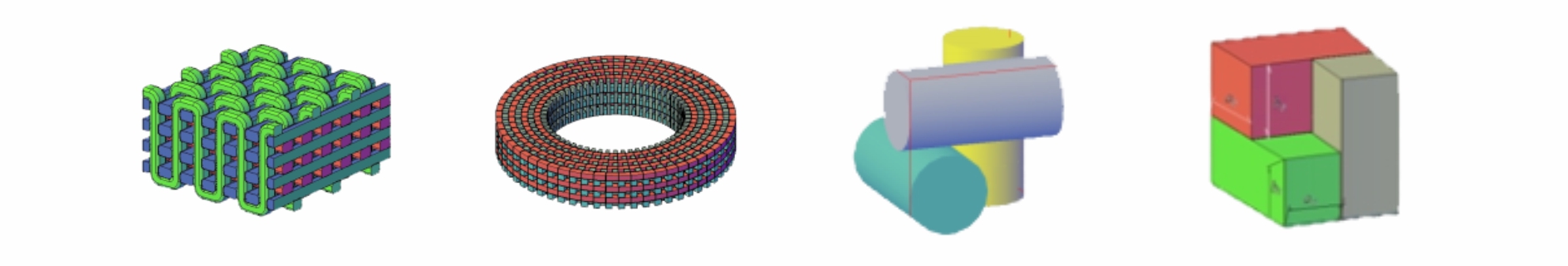

2.5D角联锁结构系列   Interlock structure

正交三向结构系列     Orthogonal Structure

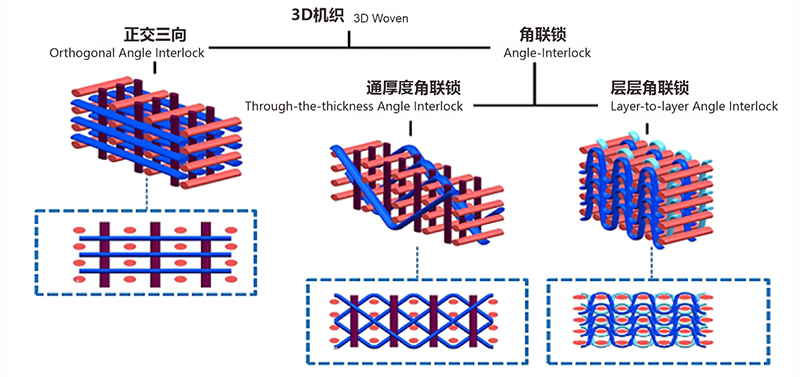

3D机织物为各向异性资料，易实现复杂结构件的仿形织造，可设计性强
。凭据复合伙料各方向的力学机能要求，矫捷设计经纬纱线的含量，满足产品的力学机能
。同时凭据产品后期的工艺要求，可调整织物的刚性，使其适应分歧复合伙料的造备工艺和服役要求
。

The 3D woven preforms is an anisotropic material, which is easy to reach the near-net shape weaving of complex structural parts and has strong designability. According to the mechanical properties of the composite material in all directions, the content of warp and weft yarn is flexibly designed to meet the mechanical properties of the product. At the same time, according to the process requirements in the later stage of the product, the rigidity of the fabric can be adjusted to adapt to the preparation process and service requirements of different composite materials.

2.5 D 结构系列

3D Structure Series

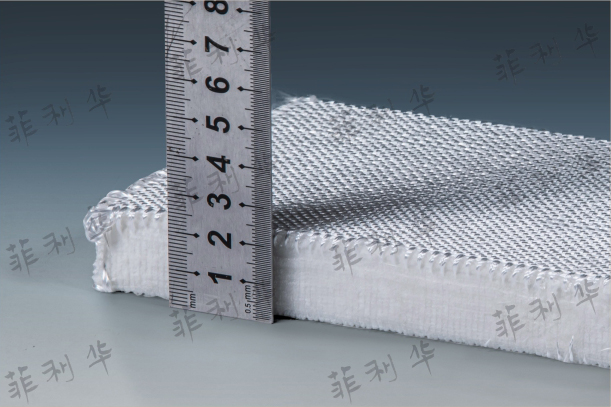

可实现 — 高厚2.5D平板织物的自动化织造
。

Achievable—Automative weaving of high thickness 3D plate preforms

可实现 — 变截面仿形织物的自动化织造
。

Achievable—Automatic weaving of near-net shape preforms with variable section

可实现 — 封顶整体仿形织物的低成本织造
。

Achievable—Low cost weaving of capped integral near-net shape preforms

利用优势：拥有更好的耐烧蚀机能，拥有更好的层间机能
。

Application advantage: Better ablative resistance , better interlayer performance.

产品名称

厚度（mm）

幅宽（mm）

2.5D高厚平板系列产品

1-90

100-1300

2.5D仿形系列产品

2.5D罩系统劣注3D壳系统列等

正交三向结构系列

Orthogonal Structure

可实现 — 80mm以内高密细纱纤维正交三向织物的织造
。

Achievable—Low linear density yarn(≤80mm)，orthogonal structure.

可实现 — 150mm以内粗纱纤维正交三向织物的织造
。

Achievable—High linear density yarn(≤150mm)，orthogonal structure.

三维纺织预造件系列重要用处：Main Application:

 · 热防护系统：发起机喷管，飞行器头锥、翼前缘及发起机热端部位
。
 · 透波系统：天线窗等
。

Wave-transparent System: Antenna Window, etc. Thermal Protection System: Engine nozzles, Nose Cone and Wing of Vehicle, Aeroengine Hot Components.

蜂窝结构系列

Honeycomb Structure Series

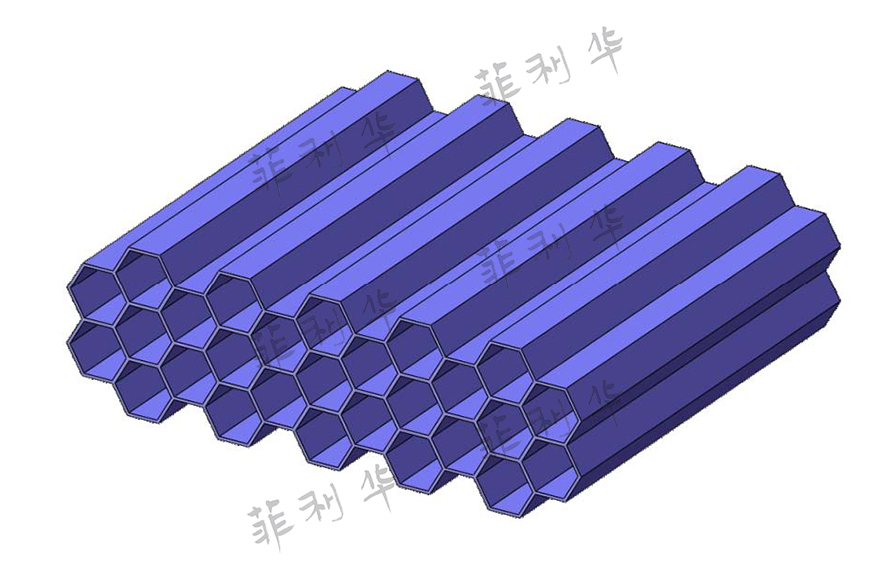

可实现 — 蜂窝织物自动化织造
。

Achievable—Automated weaving of honeycomb fabric.

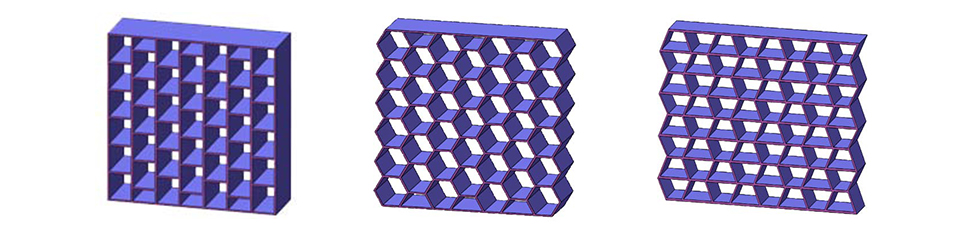

可实现 — 矩形、六边形、梯形结构蜂
。

Achievable—Rectangle、Hexagon、Trapezoidal structure honeycomb.

利用优势：Application advantage:

可设计性强，轻量化结构，适应于?温透波、?精度隔热等极端环境
。

High design flexibility，Lightweight structure，suitable for extreme environments such as hightemperature wave transmission and highprecision thermal insulation.

蜂窝单元边长（mm）
Side length of honeycomb cell

蜂窝单元壁厚（mm）
Thickness of Honeycomb cell

幅宽（mm）
Width

可定造 Customizable

0.03-4

≤700
