通明陶瓷是经过怪异资料设计与特殊工艺造备的齐全致密多晶陶瓷资料，它既能在特定光谱领域内靠近达到理论光学透过率、同时还能接受大的机械/热载荷，是一类沉要的先进结构/职能一体化资料
。

The transparent ceramic is a kind of fully dense polycrystalline material fabricated through unique material design and processing. It is an advanced material with integrated structural/ functional properties, which can not only approach to the theoretical optical transmittance in a specific spectral range but also withstand high mechanical and thermal loads.

1、通明陶瓷的弹性模量、硬度、断裂韧性以及断裂强度等机械机能均为其3-5倍以上；
2、通明陶瓷的光谱透过领域覆盖近紫表、可见光、激光、中红表波段；
3、通明陶瓷的抗热震性、耐砂尘雨蚀、环境耐候性更优

1. The mechanical properties of the transparent ceramic, such as elastic modulus, hardness, fracture toughness, and fracture strength, are more than 3 to 5 times higher.
2. The spectral transmission range of transparent ceramics covers the near-ultraviolet, visible light, laser and mid-infrared region.
3. The thermal shock resistance, sand/rain erosion resistance and weatherability of transparent ceramics are better.

机能指标对比

Critical indicators

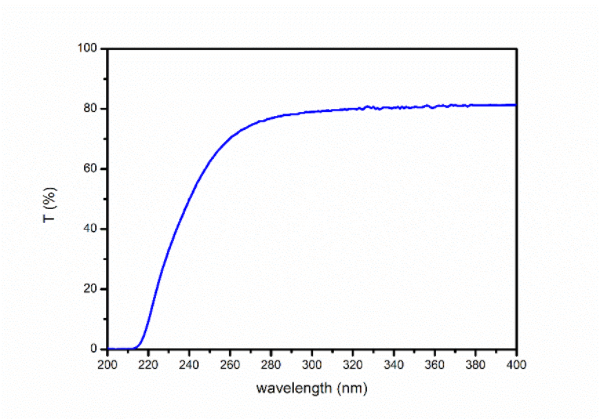

本公司产品紫表波段透过率

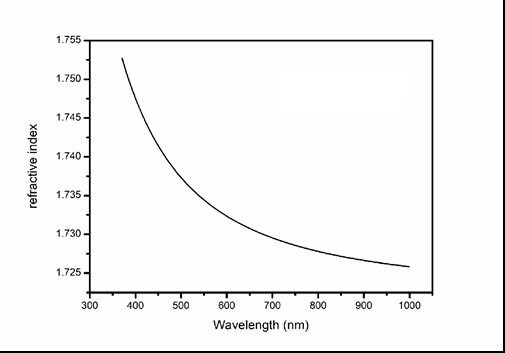

The refractive index of the company's product

本公司产品折射率

The transmittance of the company's product in the ultraviolet band

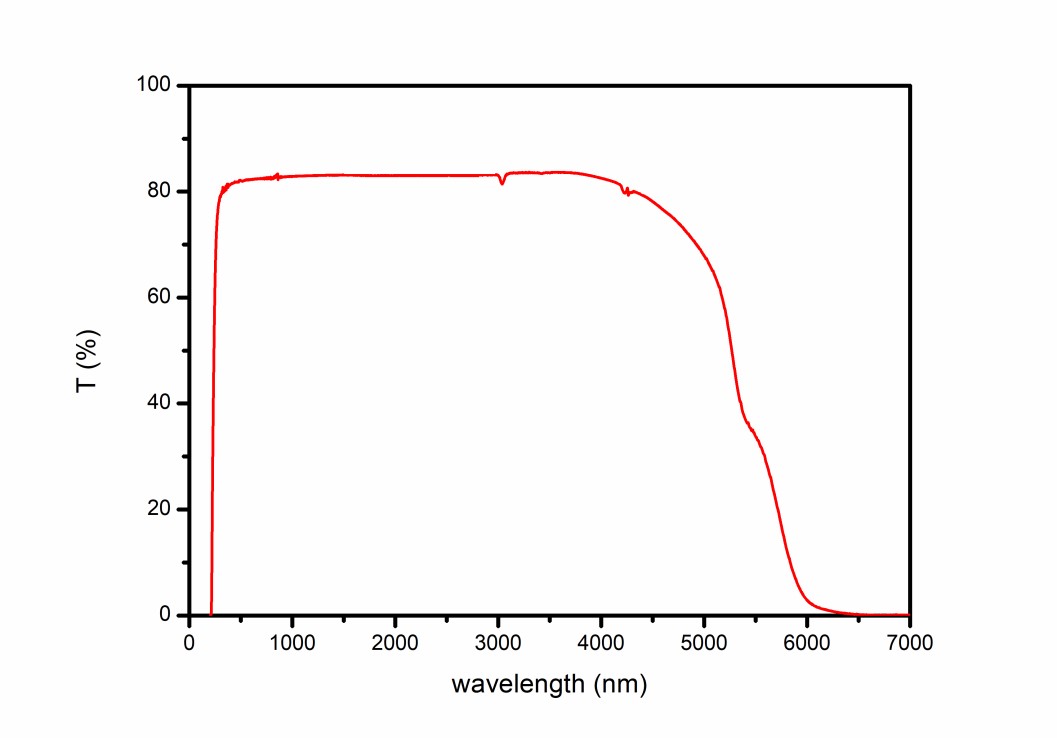

本公司产品紫表-可见光-中红表透过率

The transmittance of the company's product in the ultraviolet, visible and mid-infrared range

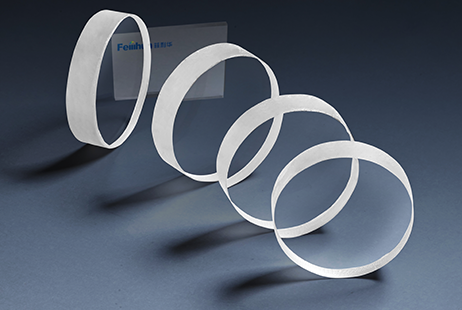

产品规格

Product specification

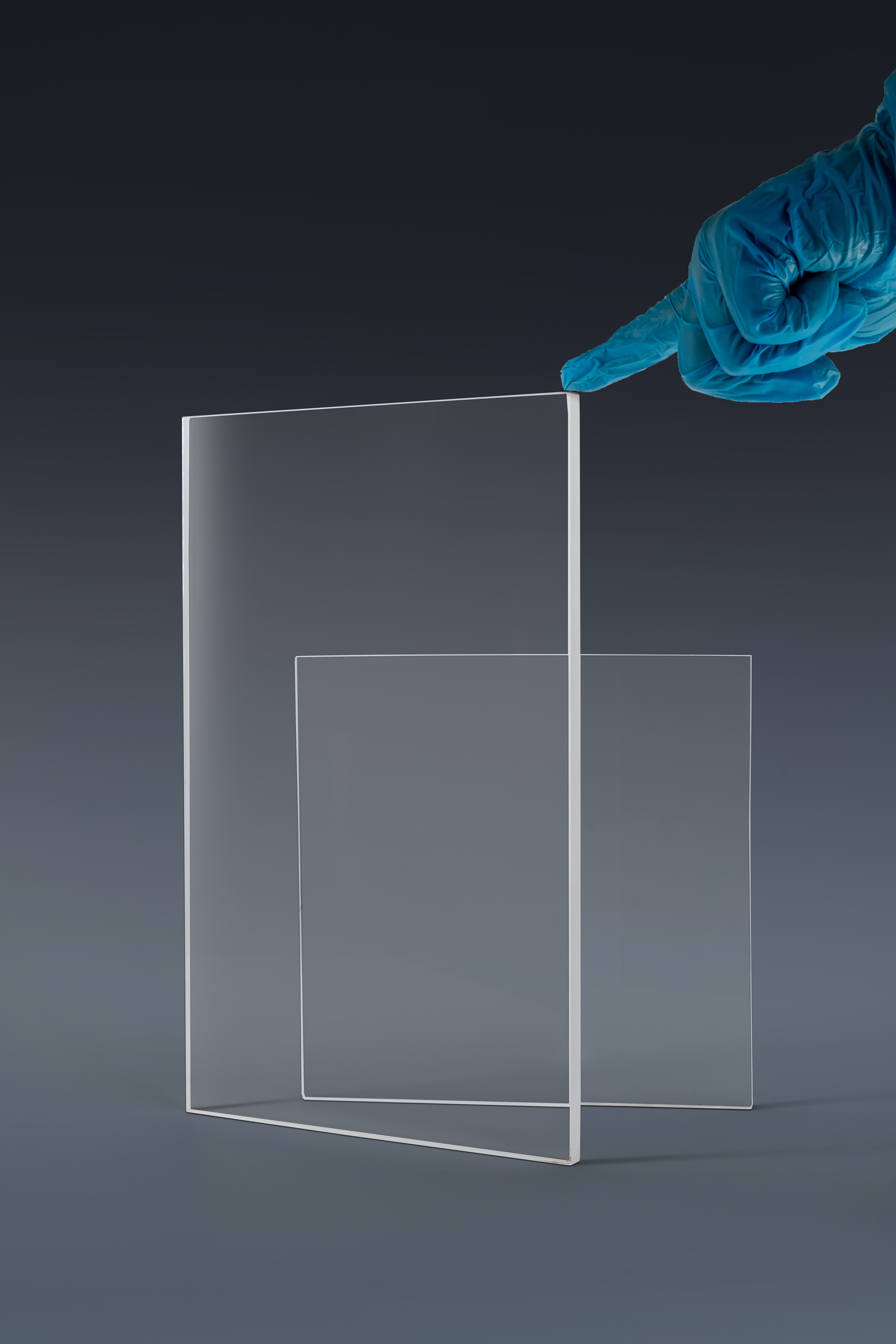

方板/Square flat plate：260×160×5 mm，
圆板/Circular flat plate：φ150×5 mm ，
可依客户需要定造

公司介绍

Company Profile

武汉海凌汇智新资料有限公司（以下简称“公司”）由超凡国际官网（创业板股票代码：300395）和武汉理工大学专家团队共同提议成立
。
公司致力于先进结构/职能一体化通明陶瓷资料技术与产品的市场化开发，目前产品重要蕴含光学陶瓷器件、半导体用通明陶瓷器件、高端设备用通明陶瓷部件等
。公司已拥有高品质通明陶瓷与器件的设计造备等全套技术和专利，研造的通明陶瓷技术指标达到国际先进水平并添补国内空缺
。公司已建成“结构/职能一体化通明陶瓷资料研发及出产平台”，占有国内最大口径“双两千”热等静压烧结系统等主题设备以及完整的通明陶瓷出产全过程检验检测平台
。

WUHAN HYALINE HUIZHI NEW MATERIALS CO., LTD. (hereinafter referred to as "the Company") was jointly founded and set up by Hubei Feilihua Quartz Glass Co., Ltd. (Gem board stock code: 300395) and the team of professionals from Wuhan University of Technology.
The Company is dedicated to the market-oriented development of advanced structure/function integrated transparent ceramic technologies and products. Currently, it mainly produced optical ceramic devices, transparent ceramic devices for semiconductors, transparent ceramic components for high-end equipment, etc. The Company currently holds a complete set of technologies and patents for the design and preparation of advanced transparent ceramics and devices. The technical indexes of transparent structural ceramics developed have reached the international advanced level and filled gaps in the domestic. The Company has already set up a "R & D and Production platform for structure/function-integrated transparent ceramic materials" and owns the core equipments such as the largest "Double Two Thousand" hot isostatic pressing sintering system in China, as well as a complete “inspection and testing platform for the entire process of transparent ceramic production”.
